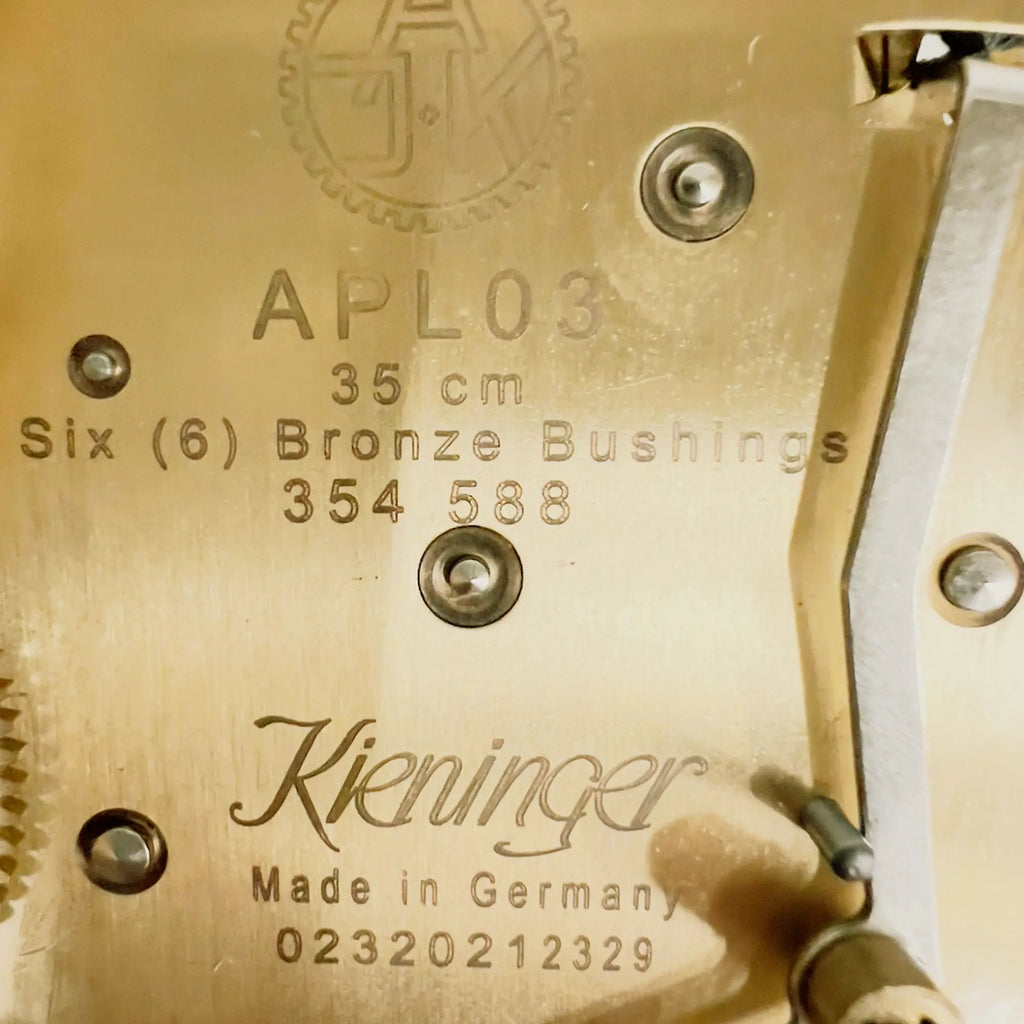

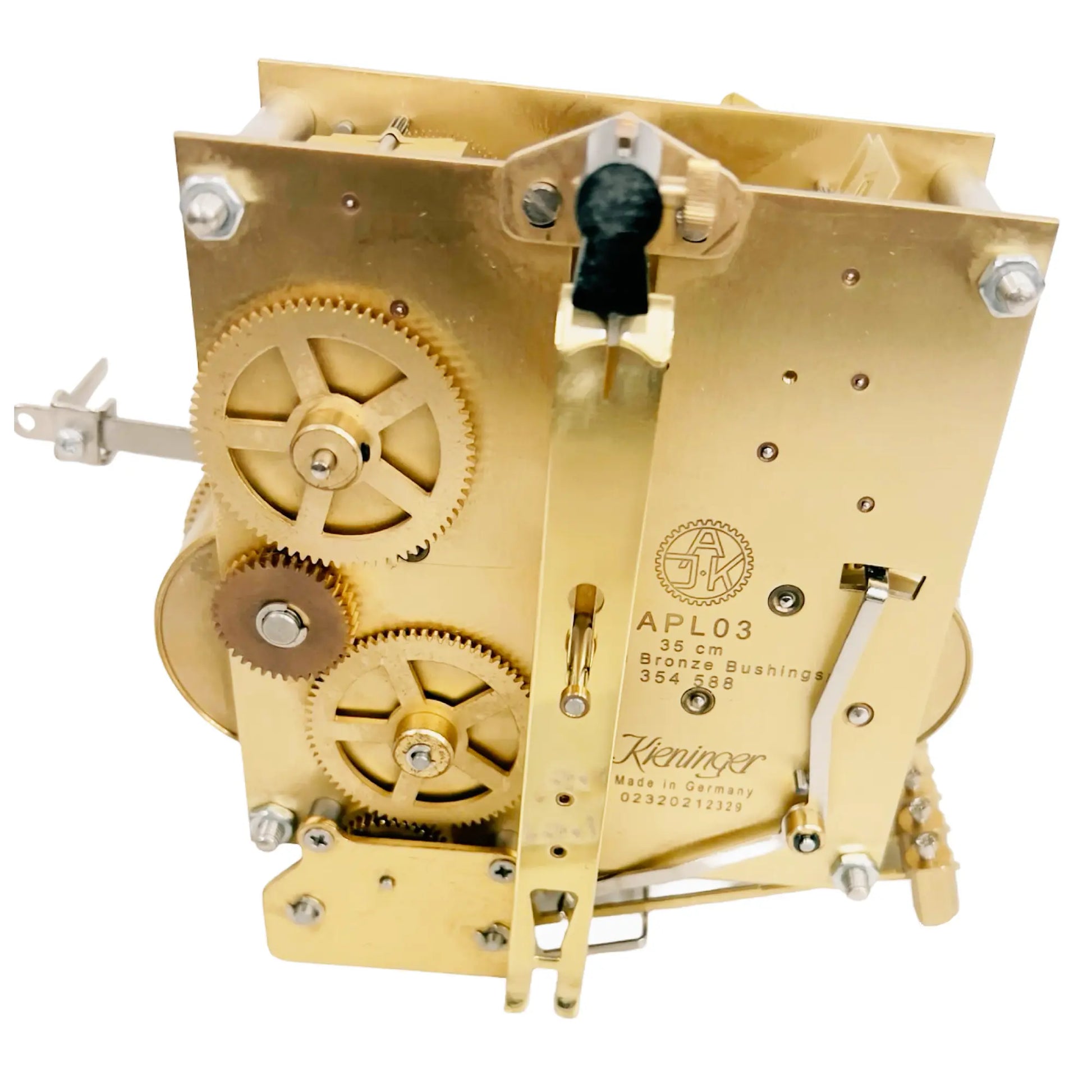

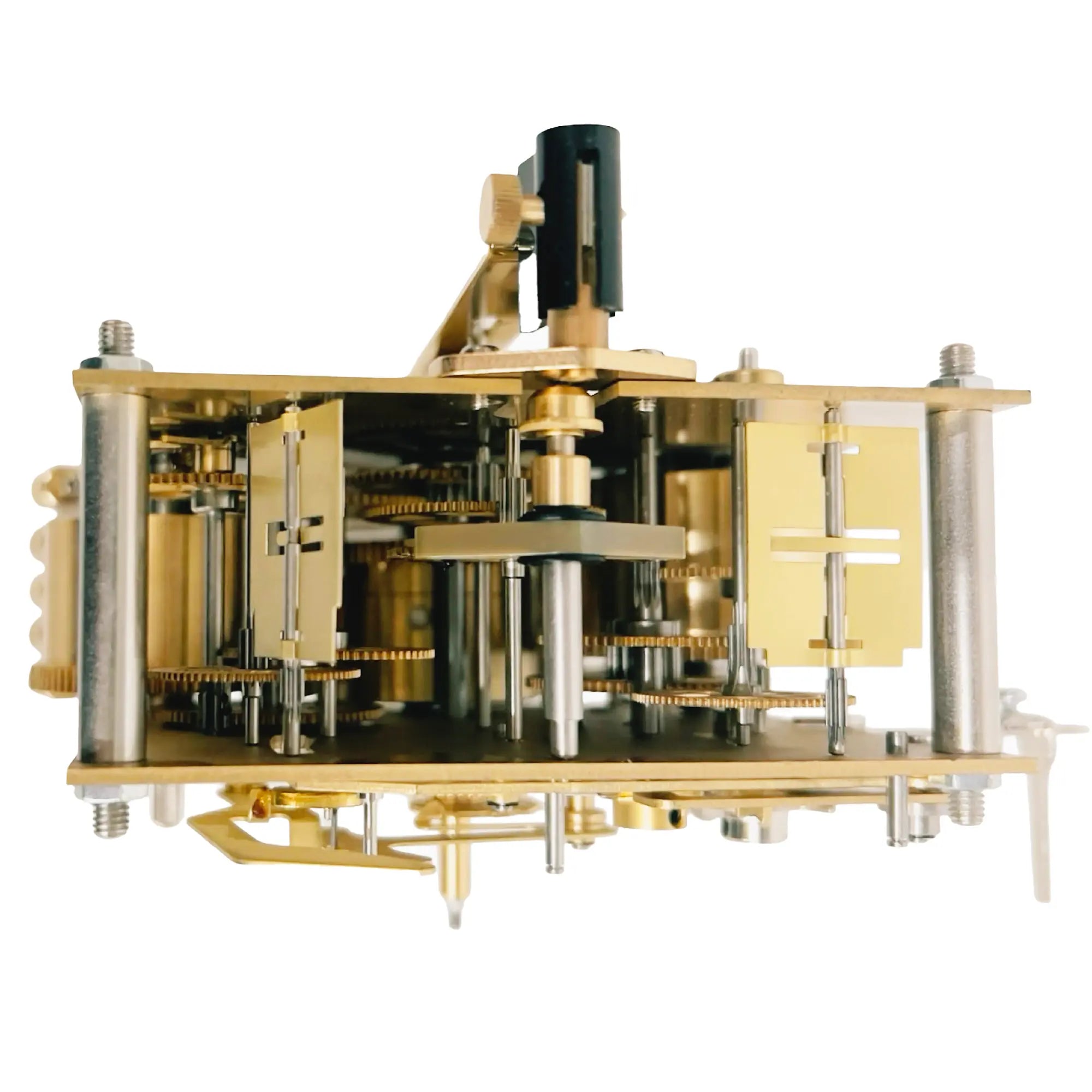

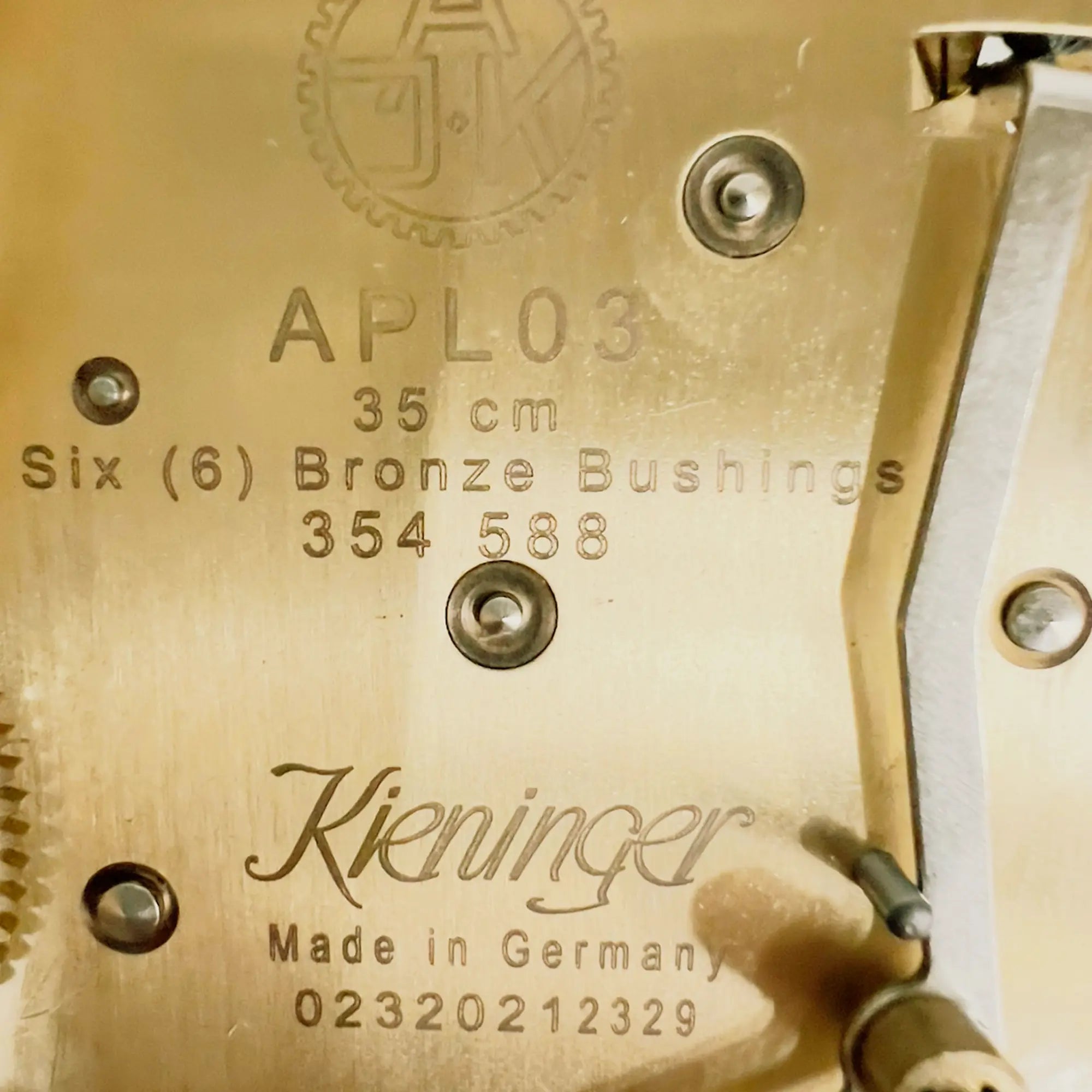

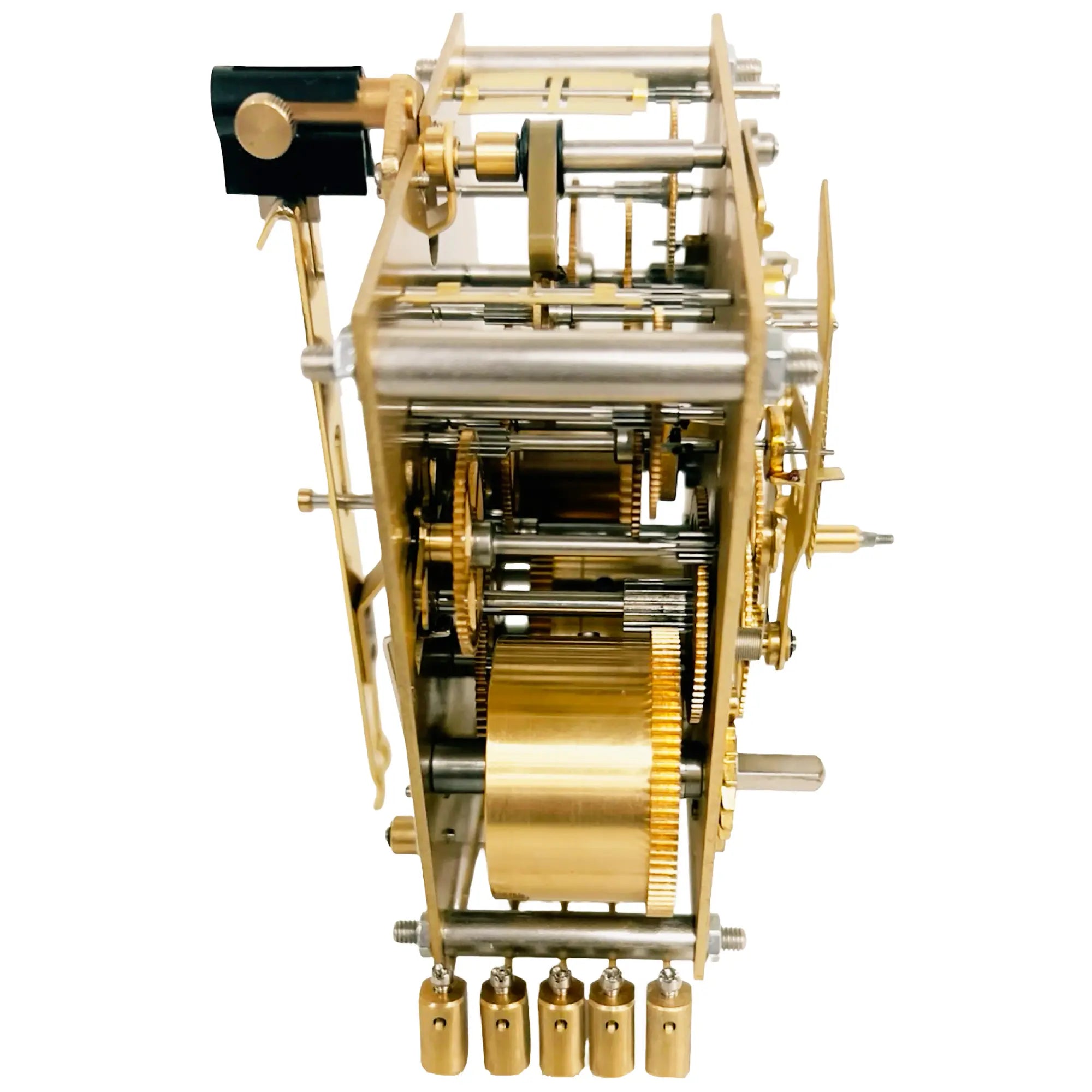

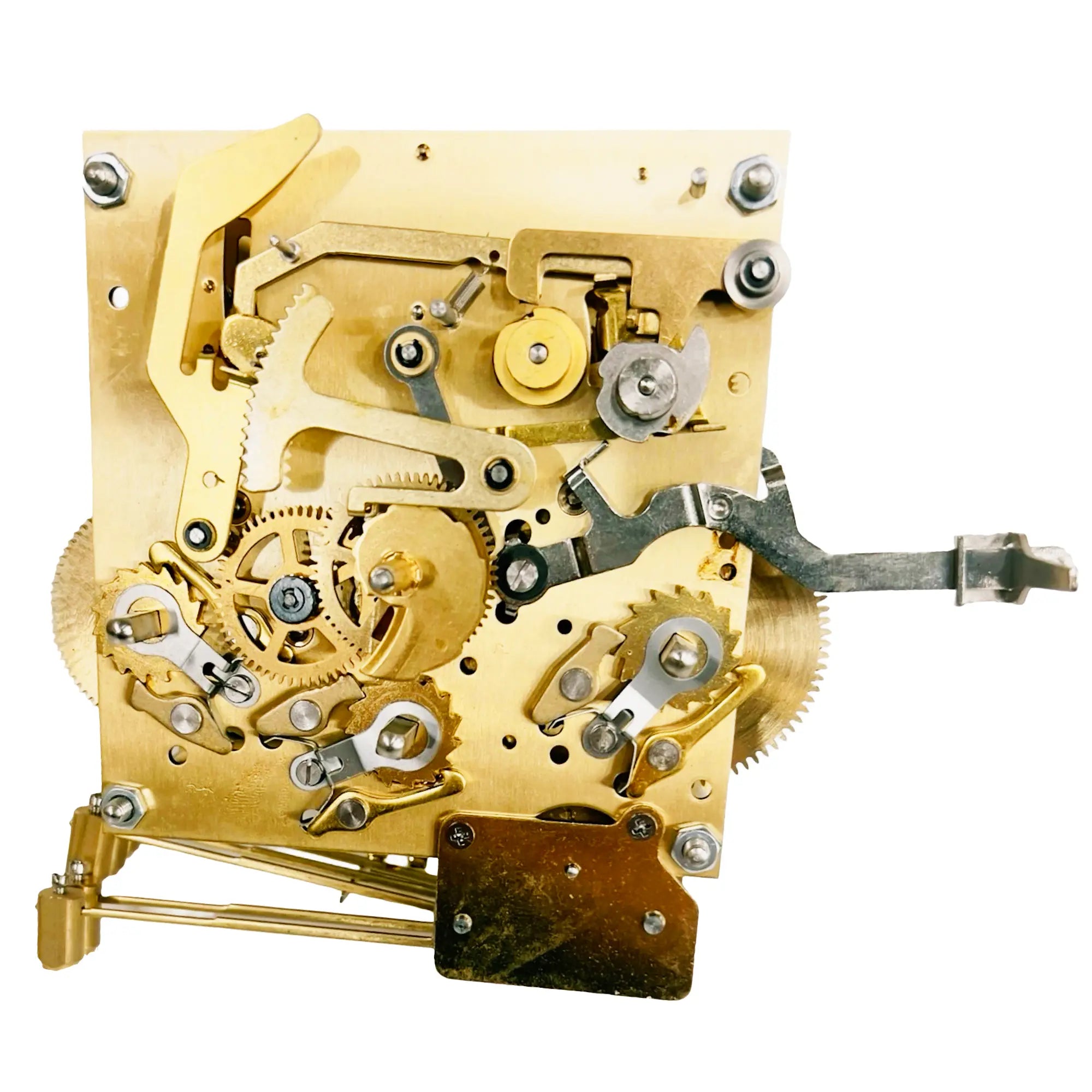

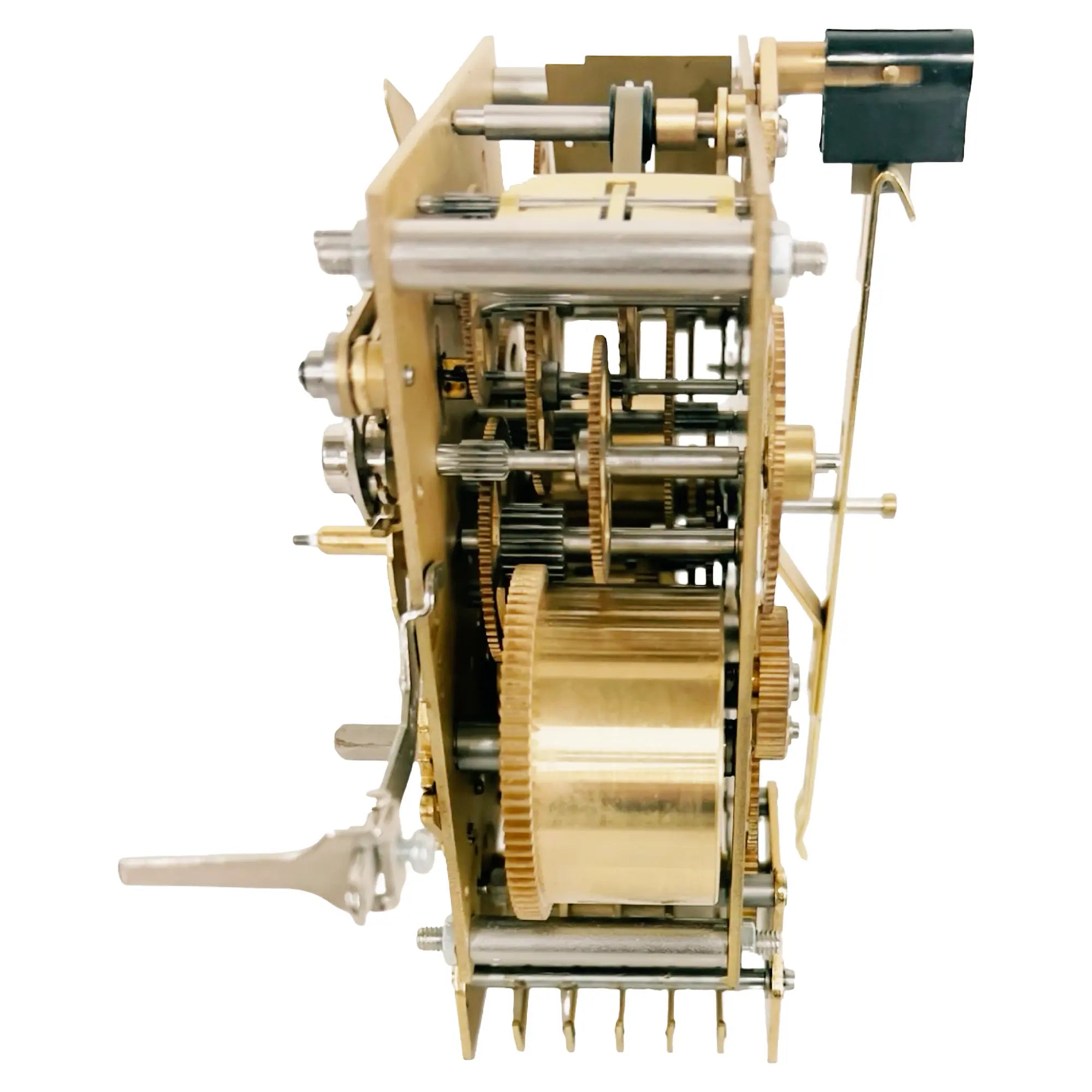

Key Wound Movement | Kieninger APL03 | 35 cm | 354588
German-made Kieninger APL03 mechanical movement. Precision 8-day, spring-driven unit with 1/4-hour Westminster chime.
-
Movement Type: 8-day spring-driven mechanical movement
-
Pendulum Length: 35 cm
-
Escapement: Graham anchor escapement (pendulum controlled)
-
Chime: 4/4 Westminster chime on 5-rod gong (underbeater configuration)
-
Hammer Configuration: 5 rear-mounted hammers
-
Bushings: Six (6) bronze bushings
-
Features: Front winding with safety winding stop; heavy brass plates
-
Center Shaft Length: Approx. 27.8 mm (plate to hand nut thread)Â
-
Plate Size: Approx. 100 × 104 mm
-
Plate Thickness: Approx. 1.7 mm per plate
-
Pair with: Howard Miller chime block: part # 357096
Please provide your clock's model number and/or serial number to help ensure accurate identification of the proper part, minimizing errors and delays in the replacement process. View our Movement Cross-reference Guide to help ensure order accuracy.
